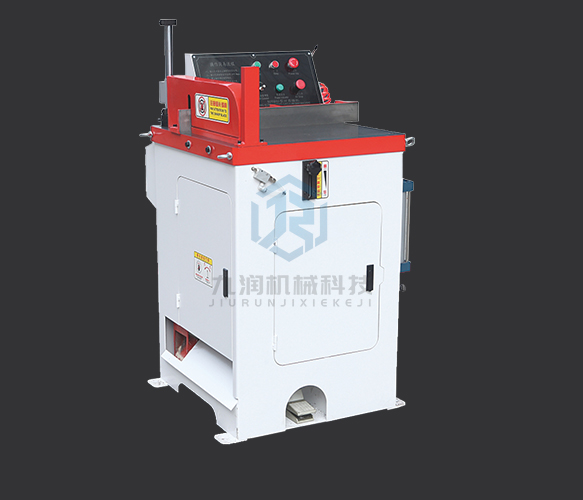

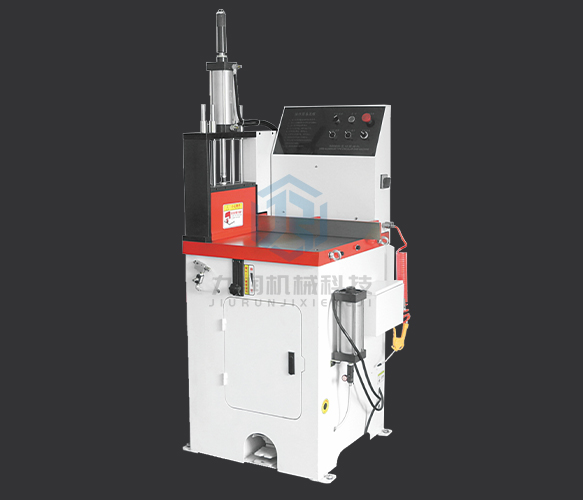

JR-455Q上下壓緊半自動鋁切機
隱藏式鋸片，可以安全的上下工作;自動噴油，切面無毛刺，鋸片更耐用;一次可單支或多支鋸切，少量或大批量生產告適宜;解決了傳統機臺鋁屑飛濺的弊病，改善工作環境;夾緊切割的程序都由電氣控制;工作時間可調，夾緊壓力可調;切薄壁材料不變形速度快，這樣大大提高了工作效率
在線詢價
產品詳情
機型Model | JR-455Q半自動/上下壓緊 | JR-505Q半自動/上下壓緊 | JR-610Q半自動/上下壓緊 |
| 主電機功率Cutting motor power | 4KW | 4KW | 5.5KW |
| 主軸轉速Spindle speed | φ305-φ450mm 內孔lnner hole25.4mm | φ305-φ505mm 內孔lnner hole25.4mm | φ305-φ610mm 內孔lnner hole25.4mm |
| 鋸片規格Saw blade specifications | 0-3000rpm | 0-3000rpm | 0-2200rpm |
| 切割角度Cutting angle | 90°/45° | 90°/45° | 90°/45° |
| 最大鋸切高度Maximum sawing height | 125mm | 155mm | 220mm |
| 最大鋸切寬度Maximum sawing width | 300mm | 320mm | 420mm |
| 鋸切能力圓形Circular sawing ability | 110*110mm | 140*140mm | 195*195mm |
| 鋸切能力方形Square sawing ability | 120mm | 155mm | 220mm |
| 電壓Voltage | 國內380V 50HZ國外依客戶所需定制Domestic380V 50HZ,customized according to customer needs overseas | ||
| 所需空壓Required air pressure | 5-8kg/cm2 | 5-8kg/cm2 | 5-8kg/cm2 |
| 進刀方式Feed method | 氣油缸上下進刀Air cylinder up and down feed | ||
| 壓料方式Material pressing method | 氣缸/龍門架(上下壓緊)Cylinder/gantry frame(upper and lower compression) | ||
| 機器尺寸Machine size | 800*800*1650mm/900*900*1750mm | 850*850*1750mm/900x900*1900mm | 900*900*1800mm/1000*1000*2100mm |
| 重量Weight | 0.35T/0.4T | 0.4T/0.45T | 0.58T/0.6T |
| 適用材料Applicable materials | 適合鋸切新能源汽車零部件、散熱片、鋁材、銅材、pv、塑鋼材料、電木板、亞克力塑膠、鐵氣龍、蜂巢板、木板等非鐵金屬材料Suitable for sawing new energy vehicle parts, heat sinks, aluminum, copper, PVc, plastic steel, bakelite, acrylic plastic, PTFEhoneycomb board, wood board and other non-ferrous metal materials | ||
